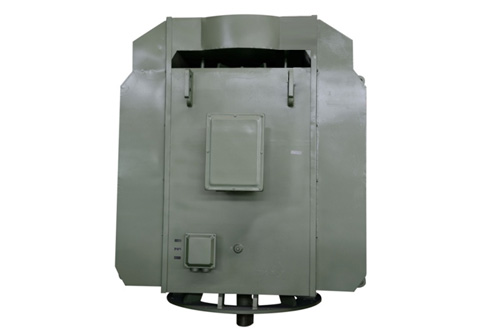

YLS, YLKS, YLKK系列6kV(H315~630)中型高压立式三相异步电动机

发布日期:2014-09-30

LS, YLKS, YLKK Series 6kV (H355~630) Medium-size High Voltage Vertical Motor



 概述    Summary\
 额定功率:185~3150kW  Rate power:     185~3150kW
 额定电压:3kV、6kV   Rate voltage:    3kV, 6kV
 机座号:  355~630   Frame size:      355~630
 极数:    4~12极  Poles: 4~12p
 安装型式:IMV1  Installation type:IMV1
 防护等级:YLS 系列:IP23
 YLKS、YLKK系列:IP55

 Protection degree: YLS series: IP23
 YLKS、YLKK series: IP55

 冷却方式:YLS 系列:IC01

 YLKS系列:IC81W

 YLKK系列:IC611或IC616

 Cooling method: YLS series: IC401
 YLKS series: IC81W
 YLKK series: IC611 or IC616

  结构特点  Structural characteristics
该系列电机采用箱式钢板结构,带法兰的立式安装型式,拆下冷却器或防护罩即可观察和触及电机内部,便于电机的安装维护;转子采用笼型铸铝转子,一次成型,也可根据客户需求生产铜条转子,提高了运行可靠性;定子采用F级绝缘真空压力浸渍无溶剂工艺处理(VPI),使电机具有可靠的绝缘性能和防潮、抗冲击能力;定子和轴承均装有PT100测温元件,电机轴承均有不停机注油和排油装置,提高了电机自身的保护能力和运行效率。
This series motors with box type steel structure, vertical installation type with flange, can be observed its interior after removing the cooler or protective cover, and esay to be installed and maintained; The cage structure rotor made by once forming process or copper strip rotor made by mid-frequency welding process, improve the reliability of the motor; Insulation class F stator made by VPI process, ensure the reliability of insulation, moisture-proof and shock resistance; Temperature senor for stator and bearing, non-stop oil filling pipe and oil exit pipe, improve the protection ability and operation efficiency of the motors.
