Y2-355~450系列低压大功率三相异步电动机
发布日期：2014-09-30

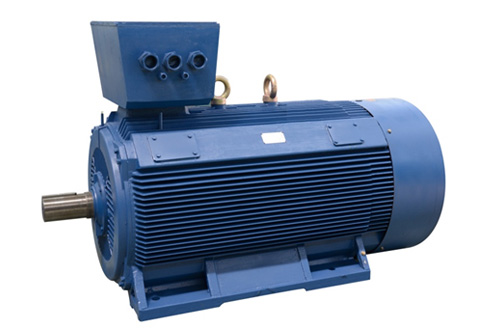

Y2-355~450 Series Low Voltage Medium Size Three Phase Asynchronous Motor
|
概述 |
Summary |
|
机座号：H355~H450 |
Frame Size: H355~H450 |
|
额定功率：132~900kW |
Rated Power: 132~900kW |
|
极数：2~12极 |
Poles: 2p,4p,6p,8p,10p,12p |
|
额定频率：50Hz |
Rated Frequency: 50Hz |
|
绝缘等级：F |
Insulation Class: F |
|
防护等级：IP55 |
Protection Degree: IP55 |
|
工作制：S1连续工作制 |
Duty: S1 |
|
冷却方式：IC411 |
Cooling Method: IC411 |
结构特点 Structural characteristics
Y2系列低压大功率电动机采用高强度铸铁结构，具有可靠性高、造型美观、噪音低、振动小等特点，适用于风机、水泵、压缩机及工程机械等多种工业领域。
The YE2 series motors with high strengh cast iron structure, have the characteristics of high reliability, beautiful apperance, low noise, little vibration, and can be applied to fan, pump, compressor, construction machinery and other industrial fields.
