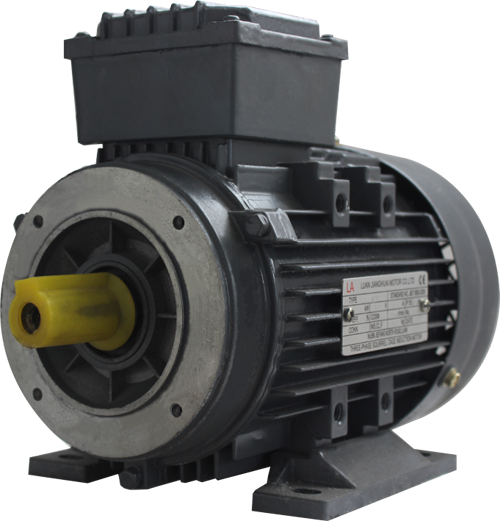

MS、YE2、YE3-63~160 Series High Efficiency Aluminum Frame Three Phase Asynchronous Motor
|
概述 |
Summary |
|
机座号：H63~H160 |
Frame Size: H63~H160 |
|
额定功率：0.12~18.5kW |
Rated Power: 0.12~18.5kW |
|
额定电压频率：380V/50Hz |
Rated Voltage and Frequency: 380V/50Hz |
|
极数：2p~8p |
Poles: 2p,4p,6p,8p |
|
防护等级：IP54,IP55 |
Protection Degree: IP54,IP55 |
|
绝缘等级：F |
Insulation Class: F |
|
性能参数：同YSF、YE2、YE3系列 |
Performance parameters: same as YSF、YE2、YE3 series |
结构特点 Structural characteristics
该产品外壳结构件采用高强度铝合金压铸而成，结构紧凑，底脚可拆卸，具有效率高、可靠性高、造型美观、噪音低、振动小等特点，适用于风机、水泵、机床、包装机械、木工机械等各类机械传动设备。
The YE2 series aluminum frame high efficiency motors with compact structure and removable footing, have the characteristics of high efficiency, high reliability, beautiful apperance, low noise, little vibration, and can be applied to a variery of transmisson equiments such as fan, pump, machine tool, packaging machinery, wood-working machinery, etc.
YE2系列铝壳高效三相异步电动机的外形及安装尺寸，以及风叶、风罩、接线框盖等相关配件，与YE3系列铝壳超高效电动机完全一致。
The YE2 series high efficiency aluminum frame motors’ mounting dimension and accessories including fan, fan cover, terminal box and so on are exactly the same as YE3 series ultra high efficiency aluminum frame motors.
